Key Features
Scan Type: 2D, 1D
Image Sensor: 640x480 pixels
Scan Range: Standard Range
Corded/Cordless: Corded
Commonly Used For
Electronic Patient and Medical Record Access and Identification
Bedside Point of Care
Blood Bank Management
In-home Caregiving
Medical Equipment Manufacturing

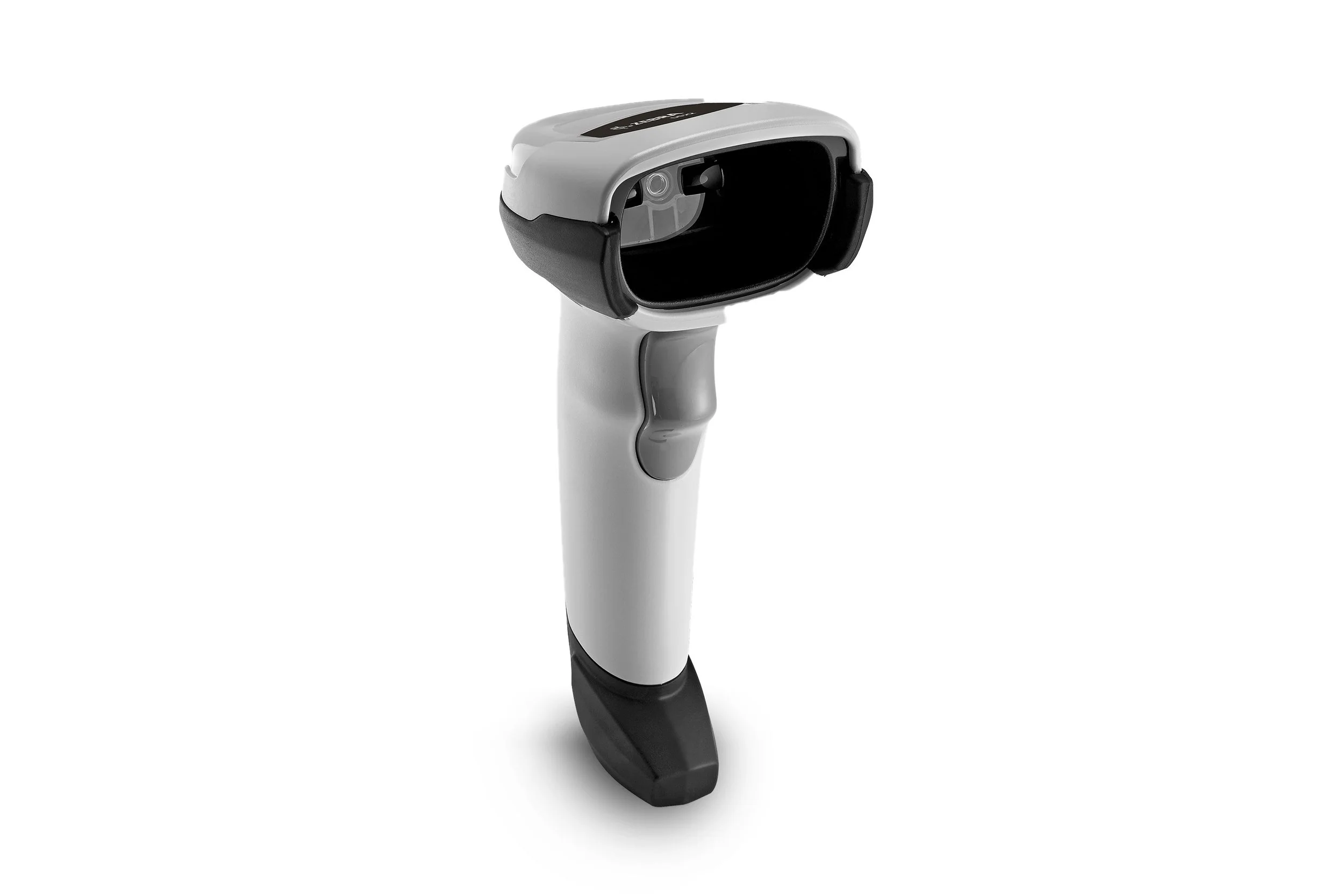

DS2200 Series for Healthcare
Easy to Clean and Sanitize
Unlike general purpose scanners, the DS2200-HC Series features a disinfectant-ready housing designed to handle regular sanitizing with popular disinfectants.
“Do Not Disturb” Mode
Scanner feedback is critical, and so is the patient experience. For sound-sensitive environments, Zebra’s Direct Decode Indicator projects illumination on the barcode to indicate a good decode. Clinicians instantly know if a medicine, wristband or IV bag was properly scanned, while patients aren’t disturbed by a loud beep.
Patent-Pending Technology for the Most Intuitive Aiming
An innovative aim line removes the guesswork by guiding clinicians to scan at the ideal distance from the barcode.
Full-Shift Battery Power Guaranteed
With 14 hours of power, your cordless DS2278-HC scanners are always available for use—there’s no need to waste valuable time recharging a battery during a clinician’s shift.
On-the-Fly Switching Between Handheld and Hands-Free Scanning

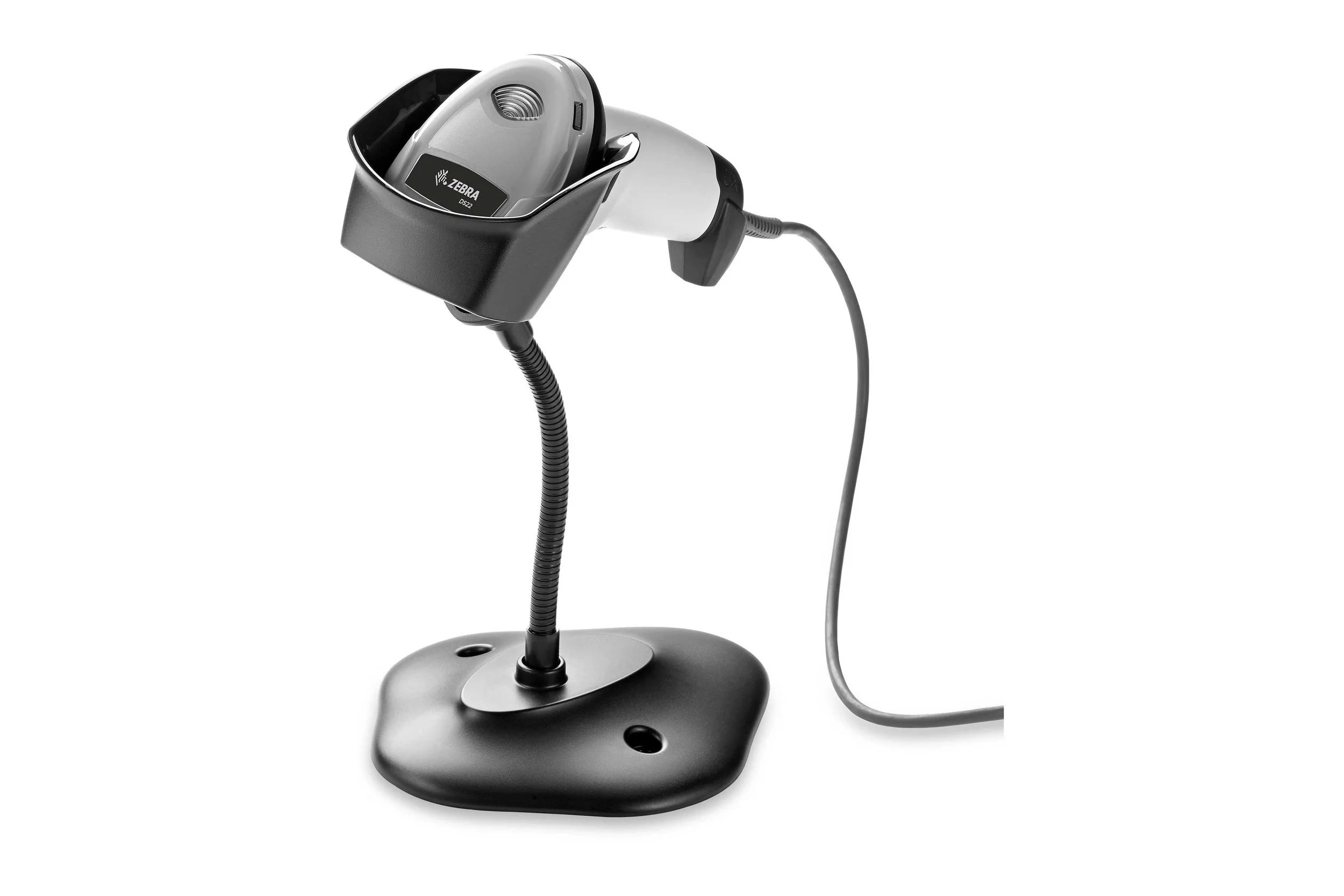

In the lab and pharmacy, some tasks may be better suited for handheld scanning and others for hands-free. With the DS2200-HC Series, switching modes is fast and easy. Simply place the scanner in the optional presentation stand to automatically switch to hands-free mode; then pick up the scanner for handheld mode.
Dependable, Affordable and Purpose-Built for Healthcare
Whether your healthcare workers are admitting a patient, administering medication, collecting a specimen or performing inventory and dietary management, there’s no room for error. Now you can give your staff the power to get it all done right with the DS2200 Series for Healthcare. Unlike general purpose scanners, the DS2200-HC Series can withstand the constant disinfecting required at the point-of-care. It easily and accurately captures the many kinds of barcodes commonly used in hospitals—from barcodes on patient wristbands and medication vials to IV bags and specimen trays. You get a purpose-built healthcare scanner that fits your budget— without compromising on performance or features. Corded and cordless models meet your scanning needs from the patient bedside to the pharmacy, admitting and more. The DS2200 Series for Healthcare—the affordable and dependable scanning you need to improve patient safety and staff productivity.
Purpose-Built for Healthcare
Instant Decoding with PRZM Intelligent Imaging
The DS2200-HC Series is engineered to ensure instant and accurate decoding of the many barcodes found at the point-of-care, labs and pharmacies. Only from Zebra, PRZM’s software decode algorithms deliver superior performance on poor quality and challenging barcodes. And a wide working range minimizes the precision needed when positioning the scanner for point-and-shoot simplicity. The result is the first-time, every-time scanning your caregivers need to improve patient safety and workflow efficiency.
Improve Patient Safety and Staff Productivity with the DS2200 Series for Healthcare—the Healthcare Scanner that Doesn’t Compromise on Performance or Features for Price.
For more information, visit www.zebra.com/ds2200hc
A Battery and Charging System Designed to Last
The long-lasting 2400 mAh Lithium Ion battery in the cordless DS2278-HC will likely never need to be replaced, reducing total cost of ownership and simplifying everyday management by eliminating the need to purchase and manage a battery pool. Additionally, the position of the charging contacts in the DS2278-HC’s charging cradle, combined with Zebra’s exclusive Connect+ Contact Technology, assures reliable, corrosion-free charging over the life of the scanner.
Control Your Scanners from a Smartphone, Tablet or PC
You can easily control the beeper, LED and Symbology settings; display scanned barcode data; access model and serial number information and more from Windows, Android and iOS hosts.
No-Cost Tools to Meet Advanced Management and Application Development Needs
If you have scanners in different locations, you can remotely manage them all with our Scanner Management Service (SMS) application. This complimentary tool makes it easy to configure and update the firmware for any DS2200-HC Series device that is plugged into a host—no depot staging or user action is required. Need a custom scanning application? Our Scanner Software Development Kits (SDKs) provide everything you need, including documentation, drivers, test utilities and sample source code for Windows, Android, iOS and Linux.
DataCapture DNA—Transforming Scanners from the Inside
Simplify the Entire Scanning Experience
Hardware is just the start of what you need to maximize the value of your scanners. The DS2200-HC Series is powered by DataCapture DNA, a set of unique development, management, visibility and productivity tools. Leveraging Zebra’s 50 years of innovation, DataCapture DNA turns Zebra scanners into powerful tools that lower your TCO and help workers get more done each day. Decrease development cycles with development tools. Dramatically simplify scanner deployments of any size with management tools. Get the remote analytics you need to keep scanners up and running with visibility tools. And reach new levels of productivity with innovations that streamline tasks.
Fast, Flexible and Easy Charging
Plug the scanner directly into the host or any standard wall socket via the Micro USB cable to charge the cordless DS2278-HC in just an hour. The presentation cradle, which provides hands-free scanning, charges the DS2278-HC in just four hours. The presentation cradle charges the battery during use, so you can keep the scanner in service during charging. And since the presentation cradle doesn’t require a separate power supply, charging can take place directly on the workstation-on-wheels.
Easy to Deploy and Manage
Pre-Configured and Ready to Use, Right Out of the Box
The DS2200-HC Series couldn’t be easier to setup. Right out of the box, the scanner is configured for the healthcare applications you use everyday, while auto-host detect cables automatically select the right host interface—just plug in the scanner and you’re ready to go.
Deploy Anywhere in the World
With support for 97 international keyboards, the DS2200-HC Series is easy to deploy all around the world.
Easily Customize Settings with 123Scan
123Scan is intuitive enough for first-time users. You can easily create configuration barcodes to program scanners, update firmware or stage a large number of devices.
Easiest Pairing on the Planet
With our industry-first Scan-to-Connect technology, clinicians can pair the cordless DS2278-HC with any Bluetooth-enabled PC, tablet or smartphone with a single scan.
Easy Integration with Tablet-Based EMR Applications
The DS2200-HC Series offers all the features you need to add high-quality scanning to your tablet-based Electronic Medical Record (EMR) application. The Micro USB cable provides a low-cost charging alternative to a cradle. And with our simplified app development tools, you can easily configure and update the DS2200-HC Series right from the tablet.
Eliminate Bluetooth Interference with Zebra’s Proprietary Wi-Fi Friendly Mode
Offered exclusively from Zebra, Wi-Fi Friendly mode ensures that your cordless DS2278-HC scanners do not operate on channels that are shared with your Wi-Fi network, protecting Wi-Fi network performance for your caregivers, clinicians, patients and visitors.
DS2200 Series for Healthcare Specifications
Battery Charge Time (from empty)
Standard USB
14 Hour Shift: 4 hours
Full Charge: 17 hours
BC1.2 USB
14 Hour Shift: 1 hour
Full Charge: 5 hours
External 5V Source
14 Hour Shift: 1 hour
Full Charge: 5 hours
Micro USB
14 Hour Shift: 1.5 hours
Full Charge: 7 hours
BC1.2 Micro USB
14 Hour Shift: 1 hour
Full Charge: 4 hours
Regulatory
Environmental RoHS EN 50581
Electrical Safety EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/ CSA-C22.2 No. 60950-1-07
LED Safety IEC 62471
IT Emissions EN 55032 (Class B)
IT Immunity EN 55024
Harmonic Current Emissions EN 61000-3-2
Voltage Fluctuation and Flicker EN 61000-3-3
Radio Frequency Devices 47 CFR Part 15, Subpart B, Class B
Digital Apparatus ICES-003 Issue 6, Class B
Cordless Accessories
CR2278 Presentation Cradle, Spare Battery, Micro USB Cable
Symbol Decode Capability
1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D: EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07
Refer to Product Reference Guide for complete list of symbologies.
Decode Ranges (Typical)3
Symbology/Resolution: Near/Far
Code 39: 5 mil 0.2 in./0.5 cm to 6.0 in./15.2 cm
Code 128: 5 mil 0.6 in./1.5 cm to 4.0 in./10.1 cm
PDF 417: 6.7 mil 0.8 in./2.0 cm to 5.7 in./14.5 cm
UPC: 13 mil (100%) 0.5 in./1.3 cm to 14.5 in./36.8 cm
Data Matrix: 10 mil 0.3 in./0.8 cm to 6.2 in./15.7 cm
QR: 20 mil 0 in./0 cm to 11 in./27.9 cm
Radio Specifications
Bluetooth Radio Standard Bluetooth Version 4.0 with BLE: Class 2 33 ft. (10.0m), Serial Port and HID Profiles; output power adjustable down from 2.0 dBm in 8 Steps
Footnotes
1. Note: 1 tumble = 0.5 cycle.
2. Simulated profile of 10 scans in 10 seconds with a 50 second rest.
3. Printing resolution, contrast, and ambient light dependent.
Physical Characteristics
Dimensions
Corded DS2208-HC:
6.5 in. H x 2.6 in. W x 3.9 in. D
16.5 cm H x 6.6 cm W x 9.9 cm DCordless DS2278-HC:
6.9 in. H x 2.6 in. W x 3.5 in. D
17.5 cm H x 6.6 cm W x 9.0 cm DPresentation Cradle:
2.8 in. H x 3.7 in. W x 4.8 in. D
7.2 cm H x 9.4 cm W x 12.2 cm D
Weight
Corded DS2208-HC: 5.7 oz. / 161.6 g
Cordless DS2278-HC: 7.5 oz. / 214 g
Presentation Cradle: 5.2 oz. / 151 g
Input Voltage Range
DS2208-HC/DS2278-HC and Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC ExternalPower Supply
Current
Corded DS2208-HC Operating Current at Nominal Voltage (5.0V): 250 mA (typical). (Note: Auto-Aim and Illumination on Acquiring Image)
Corded DS2208-HC Standby Current (idle) at Nominal Voltage (5.0V): 150 mA (typical). (Note: Auto-Aim On)
Presentation Cradle and Micro USB Cable: 500 mA (typical) Standard USB; 1100 mA (typical) BC 1.2 USB
Color Healthcare White
Supported Host Interfaces USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
USB Certification USB Certification
Keyboard Support Supports over 90 international keyboards
User Indicators Direct Decode Indicator; Good Decode LEDs; rear view LEDs; beeper (adjustable tone and volume)
Performance Characteristics
Motion Tolerance (Handheld) Up to 5 in./13 cm. per second for 13 mil UPC
Swipe Speed (Hands-Free)Up to 30.0 in./76.2 cm. per second for 13 mil UPC
Light Source Aiming Pattern: Linear 624nm Amber LED
Illumination (2) 645nm Super-Red LEDs
Imager Field of View 32.8° H x 24.8° V Nominal
Image Sensor 640 x 480 pixels
Minimum Print Contrast 15% minimum reflective difference
Skew Tolerance +/- 65°
Pitch Tolerance +/- 65°
Roll Tolerance 0°-360°
Minimum Element Resolution
Code 39 - 4.0 mil
Code 128 - 4.0 mil
Data Matrix - 6.0 mil
QR Code - 6.7 mil
User Environment
Operating Temperature
DS2208-HC/DS2278-HC Imagers:
32.0° to 122.0° F/0.0° to 50.0° CPresentation Cradle:
32.0° to 104.0° F/0.0° to 40.0° C
Storage Temperature -40.0° to 158.0° F/-40.0° to 70.0° C
Humidity 5% to 95% RH, non-condensing
Drop Specification Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Tumble Specification Designed to withstand 250 tumbles in 1.5 ft./0.5 m tumbler1
Environmental Sealing IP52
Approved Cleaners Disinfectant Ready. Refer to the product reference guide for the complete list of approved cleaners.
Electrostatic Discharge (ESD) DS2208/DS2278 and CR2278 Cradle: ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
Ambient Light Immunity 0 to 10,000 Foot Candles/0 to 107,600 Lux
Battery
Battery Capacity/Battery Type 2,400 mAh Li-Ion Battery
Scans per Battery Charge2 110,000 scans at 60 Scans per Minute or 50,000 scans at 10 Scans per Minute
Operating Time per Full Charge2 84.0 hours
Ideal for These Applications
Healthcare
Patient administration
Positive patient identification
Medication dispensary: at patient bedside, in pharmacy, on discharge
Medication administration, authentication
Medication tracking in pharmacy and on pharmacy cart
Patient wristbands
Patient IV bag
Specimen tracking
Electronic healthcare record access
Blood product administration
