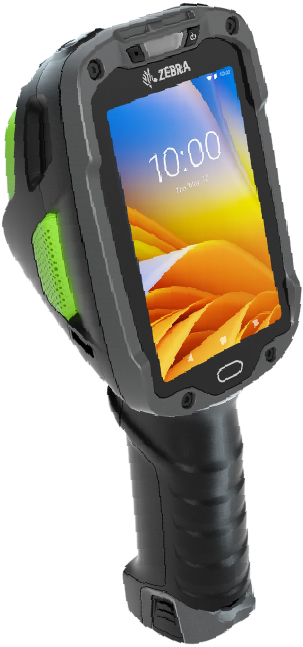

TC8300 Touch Computer
Android OS
Reliable WiFi with 2x2 MU-MIMO
Triple shift battery power & Management
Standard/DPM Configurations
Performance Charactistics
CPU Qualcomm SnapdragonTM 660 octa-core 2.2 GHz
Operating System Upgradeable to Android 14
Memory
Base, Condensation Resistant, DPM and Package 1 models: 4 GB RAM/32 GB Flash pSLC
Storage SDXC compliant micro SD card slot
App Development EMDK available through Zebra Support Central Web site
User Environment
Operating Temp.-4° F to 122° F/-20° C to 50°C
Storage Temp.-40° F to 158° F/-40° C to 70° C
Humidity 5% - 95% non condensing (condensing resistant optional)
Drop Spec. Multiple 8 ft./2.4 m drop to concrete at room temperature per MIL-STD 810G ; multiple 6 ft./1.8 m drop to concrete across full operating temperature range
Tumble Spec. 2,000 3.3 ft./1 m tumbles
Sealing IP65
Vibration 4 g’s PK Sine (5 Hz to 2 kHz); 0.04 g 2/Hz Random (20 Hz to 2 kHz)
Thermal Shock-40° F to 158° F/-40° C to 70° C rapid transition
Scanner WindowCorning™ Gorilla™ Glass
Electrostatic Discharge (ESD) ±20kVdc air discharge; ±10kVdc direct discharge; ±10kVdc indirect discharge
Physical Characteristics
Dimensions 9.17 in. L x 2.99 in. W x 2.52 in. D
233 mm L x 76 mm W x 64 mm D
Weight Base: 17.2 oz./490 g; Package 1: 17.6 oz./500 g
Display 800 x 480 pixels; 4.0 in. diagonal; transflective LCD display; 16.7 Million (24-bit) color support; 400 NITs
Touch Panel Multi-touch projected capacitive; fingertip (bare or gloved) input; conductive stylus supported (sold separately); Corning™ Gorilla™ Glass
Power PowerPrecision+ Lithium ion 7000 mAh with hot swap battery backup
Notifications Audible tone, multi-color LEDs, vibration
Keypad On-screen keypad
Voice and Audio Dual speakers, Bluetooth wireless headset support
Data Capture
Scanning Options
SE4750: 1D/2D medium range omnidirectional imager
SE4770: 1D/2D standard range omnidirectional imager
SE4750 DPM: Direct Part Mark (DPM) imager
SE4850: 1D/2D extended range imager
Camera 13 MP rear facing autofocus, f/2.4 aperture (optional)
NFC Tap to Pair, ISO 14443 Type A and B, Felica and ISO 15693 cards, P2P mode and Card Emulation via Host (HCE) support (optional)
Wireless Lan
Bluetooth Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE)
Zebra Interactive Sensor Technology
Light Sensor Automatically adjusts display backlight
Motion Sensor 3-axis accelerometer, 3-axis gyroscope
Proximity Sensor for automatic hands-free scanning; magnetic sensor to detect insertion in a cart mount or holster
